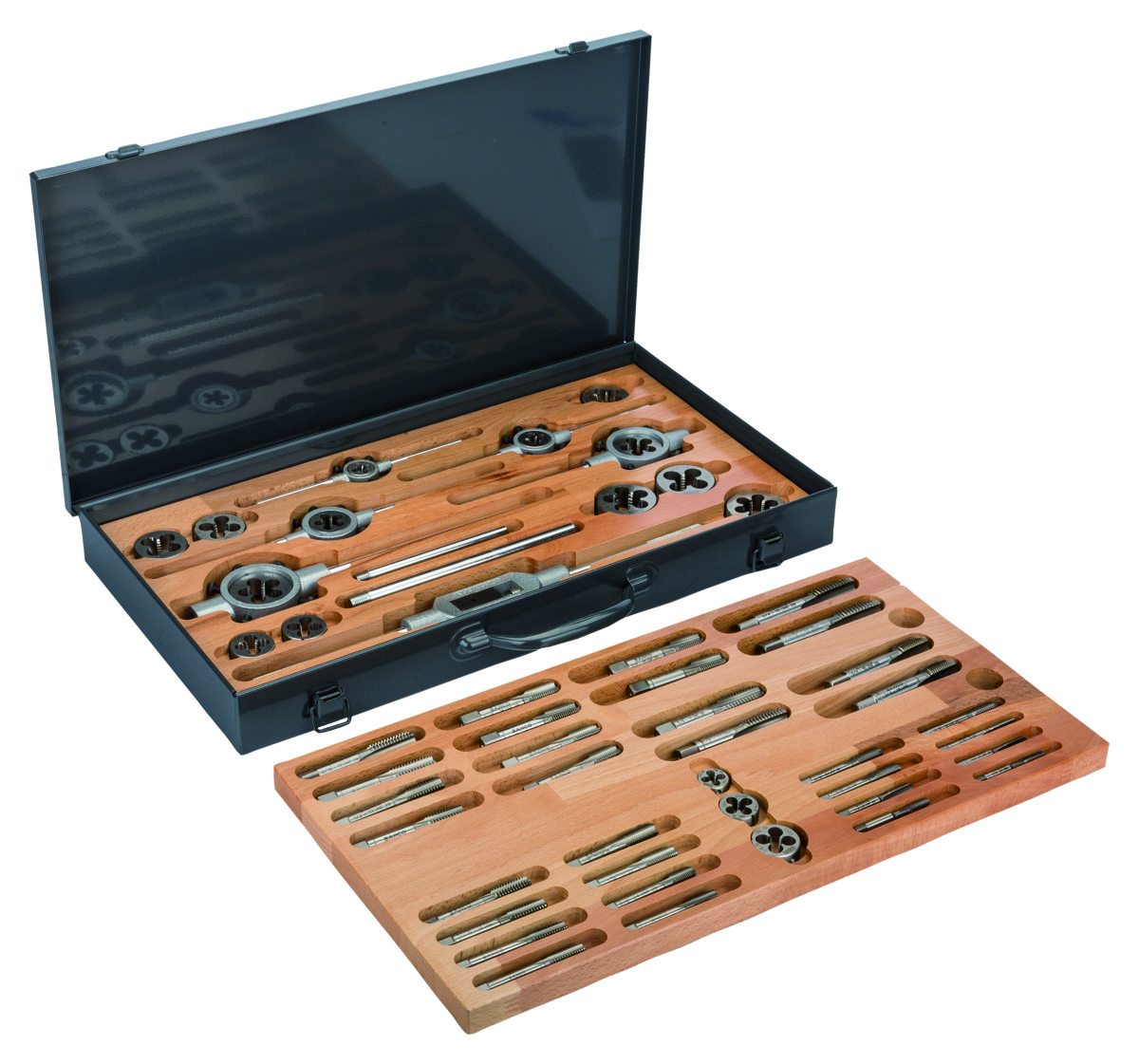

Thread cutting tool set
Gamintojas: Bahco
Brūkšninis kodas: 7314151041120
ABC: C
• American taps and dies sets
• The set covers 16 thread sizes, eight NF and eight NC threads
• For American threads:
• NF (SAE) 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8 and 3/4"
• 28, 24, 24, 20, 20, 18, 18 and 16 threads per inch
• NC (USS) 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8 and 3/4"
• 20, 18, 16, 14, 13, 12, 11 and 10 threads per inch
• Taps and dies of HSS material
• Two taps per size: start and finishing
• Polished finish taps with ground flanks
• To cut or repair male or female threads
• Set includes 54 pieces: 32 taps, 16 round dies, one adjustable tap wrench, five die stocks
• 32 Taps: eight sets of two NF taps (taper, bottoming), eight sets of two NC taps (taper, bottoming)
• 16 round dies: pre-slotted
• One adjustable tap wrench, size 3
• 5 Die stocks, 20 x 7, 25 x 9, 30 x 11, 38 x 14 and 45 x 18
• Taps DIN 352/ISO 6H, dies DIN 223/ISO 6 G, adjustable tap wrench DIN 1814,4-9, die stocks DIN 225
